AI Tracking Guide 4K Version
REMARKS: Definition of initial position: if preset position 0# is set, this position refers to a preset position
0#. If preset position 0 is not involved, this position refers to Home position.
1. Turn on tracking
1.1 Single scenario

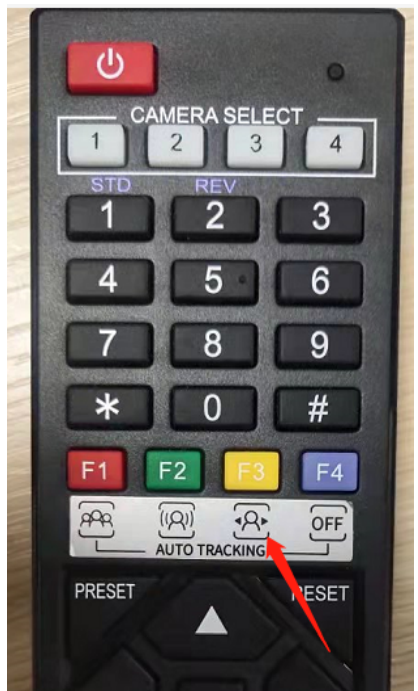

Press the F3 on the remote control to start a trace .

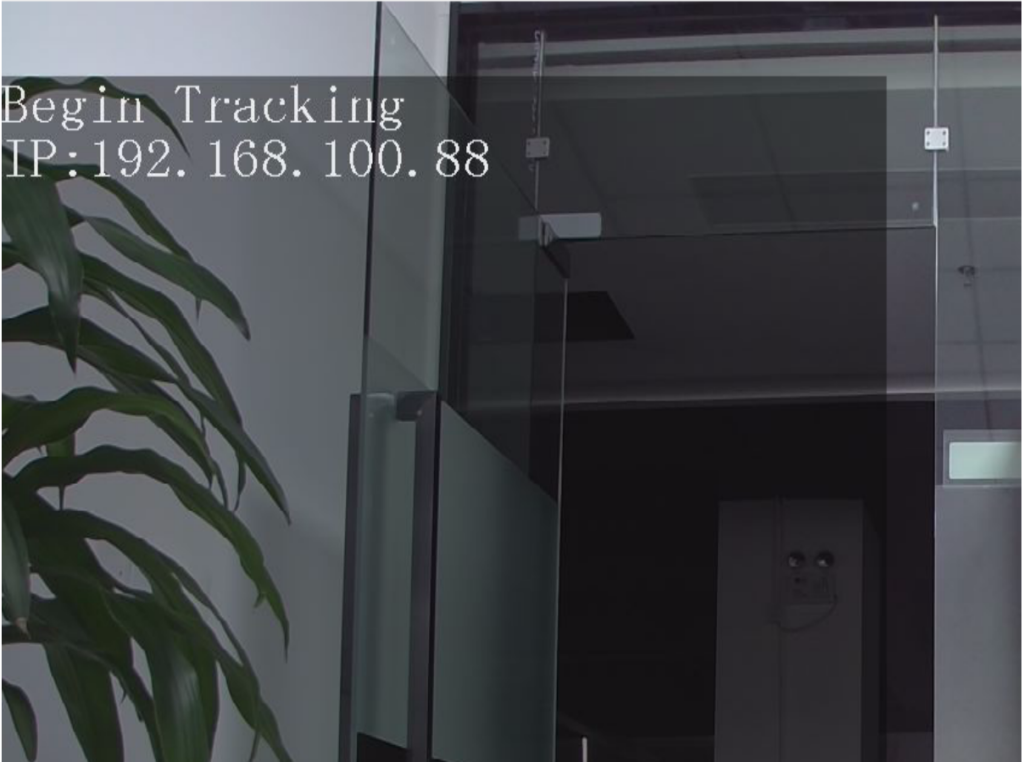

When there is only one person in the scenario, press the F3 key on the remote control to start a trace, the camera will lock the target for tracking directly. The screen is shown as the following figure, the tracking program starts successfully.
When the camera finds that the target is lost, it will stand still at the position where the target is lost for a few seconds and then return to the initial position. It will automatically enter the tracking state until the target appears again.
1.2 Multiplayer scenario

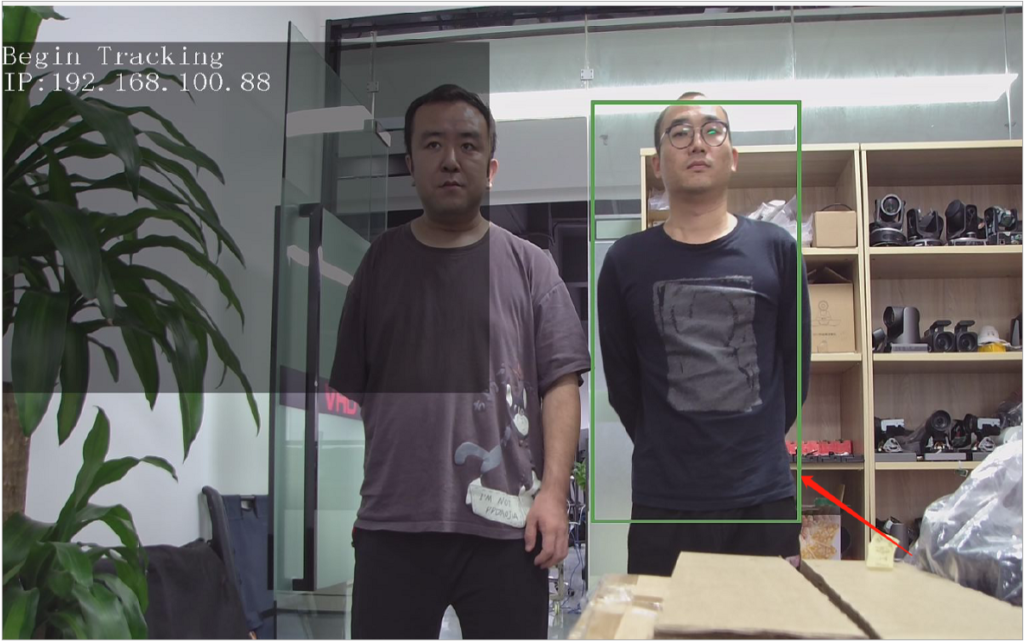

Press the F3 on the remote control to start a trace. If there are multiple people in the scenario, press the F3 key on the remote control to start a trace, and a green wireframe will appear on the screen to indicate the tracking target. Select the object to be tracked and press the home key to start tracking. Then the green wireframe disappears, and the screen is shown in the following figure, and the tracking program starts successfully.
If change a target is needed during Multi people tracking process, Press the left and right buttons on the remote control is help.
When the camera finds that the target is lost, it will stand still at the position where the target is lost for a few seconds and then return to the initial position. It will automatically enter the tracking state until the target appears again.
2. Turn off tracking

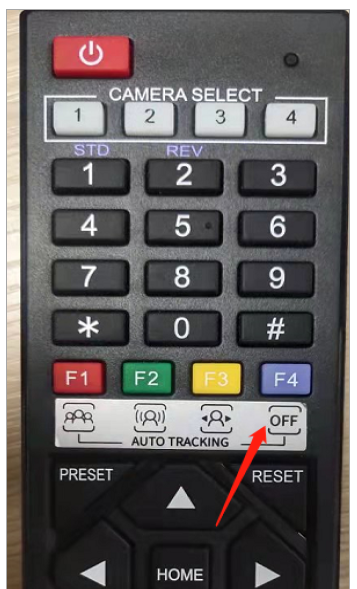

In the tracking state, press the F4 to exit tracking mode.
When you are willing to end the tracking, press the F4 key on the remote control to exit tracking mode. After tracking, the camera will return to initial position, the screen is shown as the following figure,the tracking program exits successfully.
