` Zowietek 4K POV Camera
zowietek-4K-pov-camera (14)

ZowieCam 4K POV series cameras are the latest lightweight and compact functional cameras designed by ZowieTek. They can be used with suitable C/CS/M12 or AF lenses according to the needs of different applications. The video can be output via HDMI/SDI or ultra-low latency SRT encoding.

The camera position can be mounted in a flexible manner. It can also be controlled through an IP web page and integrated into a professional video production system. In addition, a NDI|HX version is also available, which can be directly integrated into your existing NDI system Workflow. While enjoying convenient remote control, you can also smoothly experience the advantages of NDI transmission.

Ultra Compact

                         High Quality



Our design philosophy is “compact and flexible.” It can be easily installed anywhere and incorporates a 4K CMOS sensor, capable of capturing high-quality images, presenting stunning details of the photographed subjects. ZowieCam is crafted from high-quality aluminum, preserving its lightweight and portable characteristics while adding an outstanding texture to the overall appearance.

 PoE or Type-C.

You Have the Power



ZowieCam supports PoE power supply and does not require complicated wiring installation. All you need to power your camera is a CAT-5e network cable. Single cable operation that can transfer Video, Audio, Power and Tally.

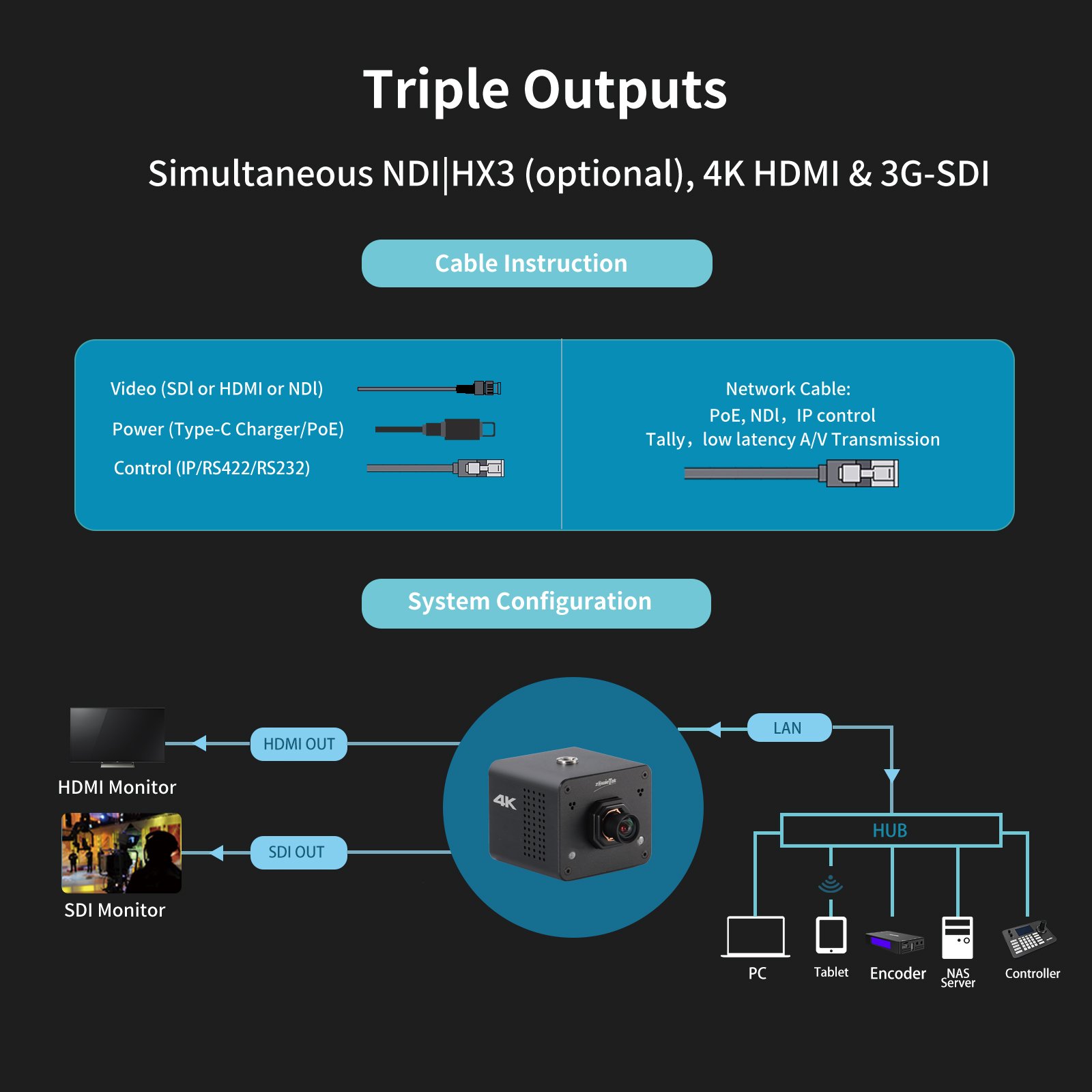

Simultaneous SDI and HDMI Output



ZowieCam can simultaneously output 4K HDMI and 3G-SDI HD video, which is suitable for diverse scene requirements

zowietek-4K-pov-camera (11)

1/4″-20 Where You Need It Most



Achieve the perfect angle effortlessly with ZowieCam’s versatile mounting options. Designed with tripod compatibility in mind, the camera features three 1/4″-20 UNC mounts strategically located on the top, side, and bottom. Mounting your camera has never been more convenient, allowing you to effortlessly capture the ideal look for your stream or video.

Breaking Free From Landscape Constraints



ZowieCam leads the trend of native vertical live streaming, breaking free from traditional landscape constraints.

The specially designed vertical live streaming feature on ZowieCam is particularly well-suited for popular social media platforms like TikTok, Instagram, YouTube Shorts, and more. It provides users with an excellent opportunity to shine in vertical live streaming applications.

WYS is WYG



ZowieCam is not only an outstanding camera device but also delivers an exceptional user experience through OSD overlay technology.The OSD overlay feature allows the addition of real-time information in videos, such as subtitles, scores, logos, timestamps, and more.

These critical data points are conveniently and comprehensively displayed on the screen without the need for additional hardware or software support, providing a seamless, at-a-glance overview for users.

You Rotate

                     I Rotate!



Equipped with a built-in gravity sensor, the camera rotation can automatically detect the orientation.

All menu systems will intelligently rotate following the gravity sensor,ensuring user-friendly navigation.

Immersive Instantaneous

Stereo Audio over HDMI ZowieCam can be equipped with a high-performance active microphone, providing users with an excellent audio capture experience.

ZowieCam grants you the access of TRS Stereo Audio over the 3.5mm jack, giving your video perfectly synced audio.

Interchangeable Lens Design



According to different application scenarios, except using AF lens,user can install a CS(M12) Mount camera lens to the zowieCam or use a C Mount camera lens with the bundled 5mm CS-C camera lens adapter ring. The most suitable lens can be replaced to match the environmental conditions to achieve perfect picture performance.

Sony CMOS Sensor With 4K 12MP



The ZowieCam equips Sony Ultra-HD 4K back-illuminated and stacked Exmor R CMOS sensor, magnification for detailed close-up view.

Unleash the Magic: Dive Into a 4K Wonderland



Every ZowieCam comes standard with a professional-grade M12 lens, ensuring you experience the highest level of image quality instantly. This lens not only provides clear and sharp images but also performs exceptionally well under various lighting conditions, bringing a more realistic and captivating visual experience to your creations.

It’s worth mentioning that, at the time of sale, each camera has undergone precise calibration to ensure the perfect match between the M12 lens and ZowieCam. This means that the moment you receive the camera, you can immediately enjoy the outstanding 4K 8M image quality.

Professional Parameter Adjustment



After installing and setting up the camera, there is no need for an additional remote control. In terms of the camera menu interface, we provide users with an intuitive and user-friendly control panel, making it easy to set and adjust camera parameters.



Users can navigate through the intuitive menu to adjust exposure, focus, white balance, and other settings to ensure that each frame achieves optimal results.

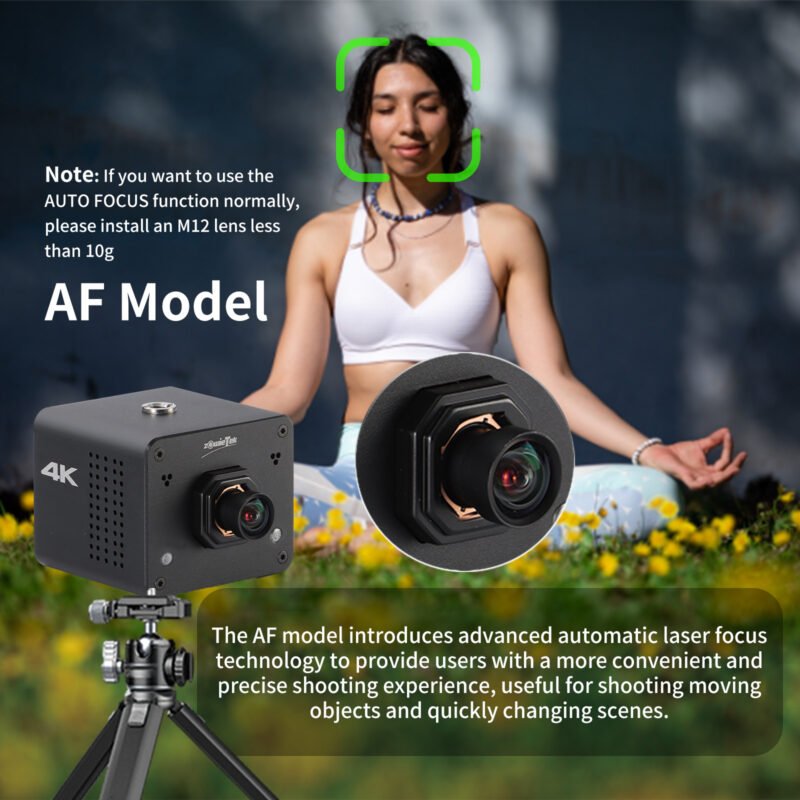

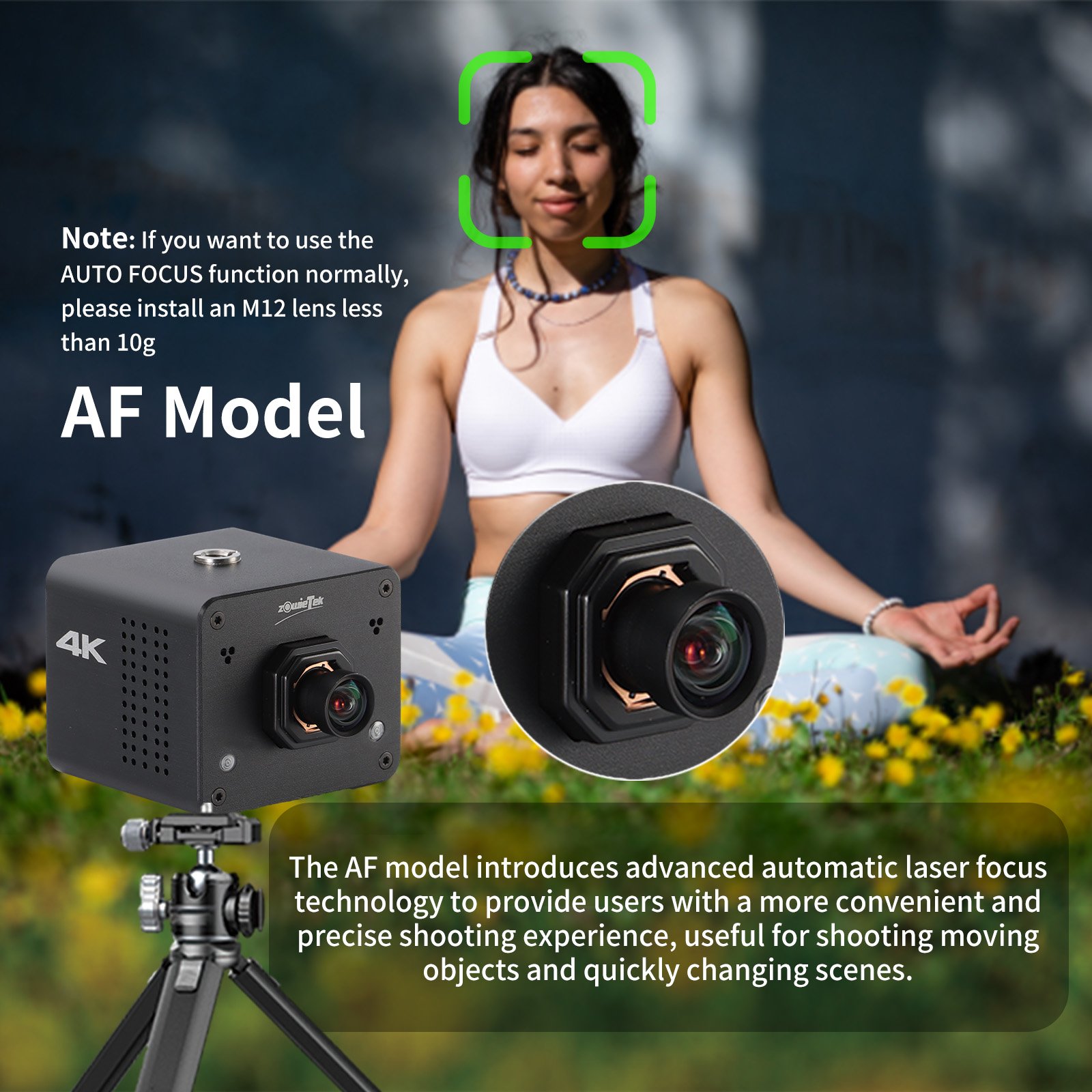

Worry-Free Focus



ZowieCam’AF model incorporates advanced Automatic Laser Focusing Technology, providing users with a more convenient and precise shooting experience.

The Auto Focus feature enables the camera to automatically adjust the lens focus during the shooting process, helping you capture the sharpest and clearest images.

This feature is particularly useful for capturing moving objects, rapidly changing scenes, or situations that require quick adaptation to environmental changes.

Experience Independent Live Streaming



What’s even more exciting is that ZowieCam supports standalone live streaming. Without the need for cumbersome setups, simply with our camera, you can directly engage in high-quality live streaming, free from the constraints of a PC.

The convenience of standalone live streaming empowers users with greater freedom in the creative process, no longer limited by device connections. This leads to a smoother and more impressive live-streaming experience.

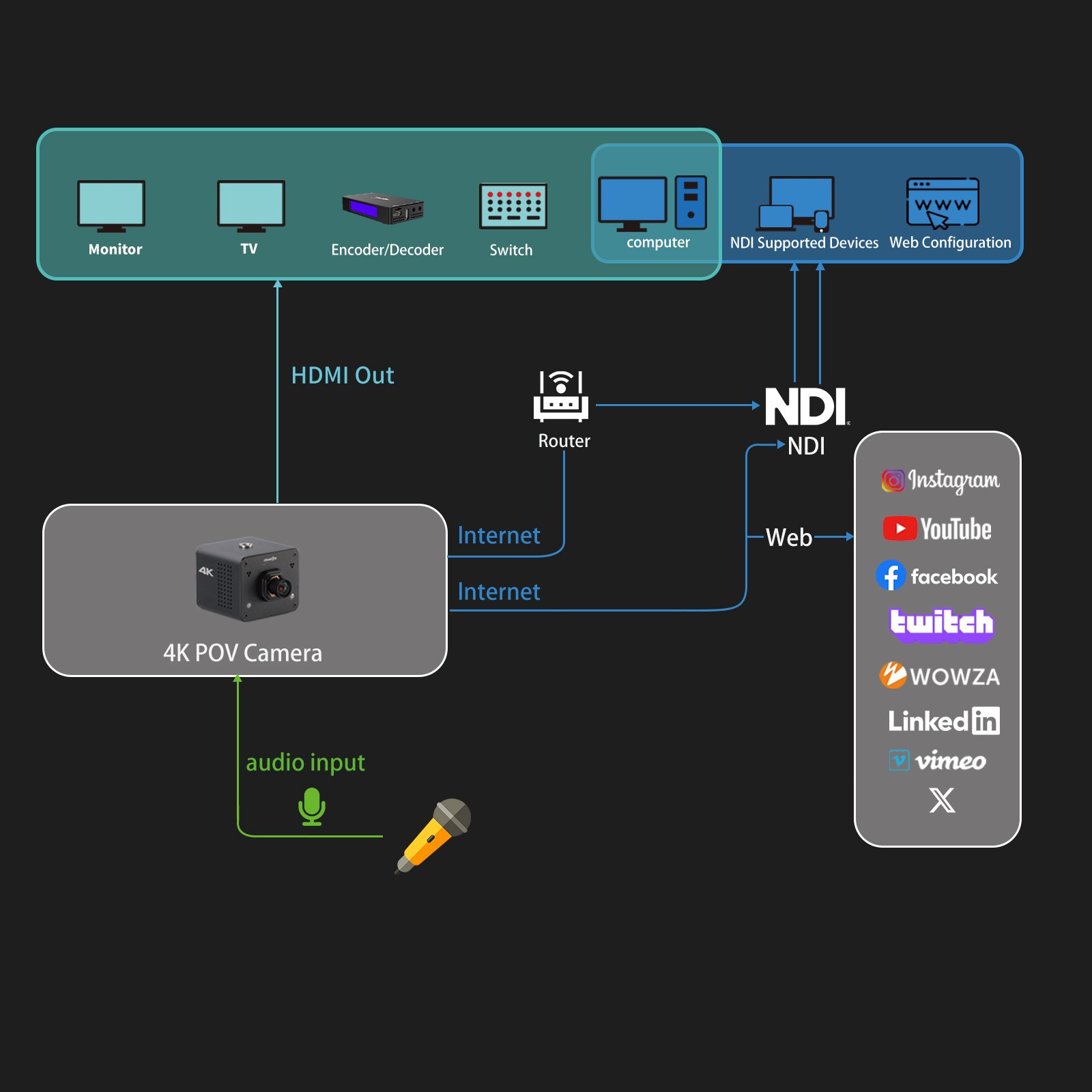

Stream. Stream. Stream.



ZowieCam takes pride in its comprehensive network control support, including protocols such as Onvif, IP VISCA, Livestream Studio, Wirecast, and NDI. This provides users with high flexibility and interoperability.



Its seamless transmission technology enables live streaming to all major RTMP(S) or SRT platforms, covering platforms such as Facebook, YouTube, Twitch, LinkedIn, Instagram, Twitter, Wowza, and Vimeo.



This ensures that users can effortlessly showcase outstanding content on various social media and live streaming platforms.

NDI Ecosystem



NDI is a standard protocol for ultra-low latency, high-quality, and interactive control over IP networks. It offers the most flexible and efficient formats, enabling any production to set up workflows easily.

ZowiePTZ is fully compatiable with NDI|HX3, can be controlled by multiple software applications including TriCaster, vMix, Wirecast, Epiphan, OBS, Vizrt Vectar, and many more.

ZowiePTZ-4K-PTZ-Camera (2)

Control From Your Pad or Phone



ZowieCam is a mobile phone friendly camera, you can control the camera via connecting its hotspot, and discover the around ZowieCam to control it.

No more app download, just visit its IP address, there is a live monitor, you can adjust the Camera parameters and stream directly.





ZowieUI



ZowieUI Ultimate Control is a cross-platform user interface available on IOS, Android, Windows, and Mac PC. Beyond product control, it offers various content management features such as camera parameter adjustments, recording functions, real-time previews, and remote operations. With its intuitive interface and exceptional maneuverability, it provides users with an unparalleled operational experience.

Additionally, leveraging ZowieSDK API for automated control enhances its functionality, making it more robust and flexible.

Mount It On Your PC as Webcam!



NDI allows ZowieCam to connect directly to your video conferencing platform as ZOOM, TEAMS, Skype, Meet. No More USB Cable needed,  giving even wider flexibility.

zowietek-4K-pov-camera-15
zowietek-4K-pov-camera (6)

Tally Tells You That I am Working!



NDI Vmix has tally information built into the metadata so when ZowieCam is connected to an NDI-enabled switcher the tally light on the front of the unit ensures your on-air talent will always know which camera is live.

Built-in tally lights make it easier for the talent to know which camera is live during a multi-camera live production.

Your Ultimate Companion For Every Scene!



The compact and versatile design of ZowieCam makes it suitable for various scenarios, including gaming, online streaming, live conferences, and online teaching.

It delivers high-quality image capture to create an outstanding user experience.

Despite its small size, ZowieCam houses a powerful 4K CMOS sensor, providing a comprehensive and excellent solution for diverse needs in different fields.

Specifications

Power Input USB TYPE C, DC to USB C Adapter support Up to 20V 0.5A, 12W and above,PoE(802.3af), CAT5e above
Consumption <12W Max
Camera Sensor size Sony 1/2.3” Back-illuminated and stacked Exmor R CMOS
Effective Pixels 8Mega Pixels, 3840(H) x 2160(V)
Aperture/IRIS F2.2, Default factory-installed lens
Gain 0~16 steps
Electronic Shutter AUTO, 1/25, 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/125, 1/180 1/250, 1/300, 1/350, 1/500, 1/600, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000
Focal Length 1.86mm*, Depends on lens
FOV(D/H/V) 48.3°/42.6°/24.6°, Distortion < 1%
Gamma Control 9 options
Noise Reduction 2D/3D
White Balance Auto, One Push, R/B Gain, Color Temp, Lock
Color Temp 3000-6500K
Focus Manual for M12 and CS. AF for VCM.
Exposure Auto, Shutter Priority, Manual
Mirror/Flip Automatically
Zoom Ratio Depend on Lens. CS only
Lens Mount M12, CS Interchangeable*
Lens 4K 8M Pixel M12 Non-Distortion Lens *M12 Lens shipping with camera, CS Lens not included
Video Video Encoder H.264 HP/MP/BP, H.265 MP
Resolution

4K2160p25/30, 1080p25/30/50/60, 1080i50/60, 720p50/60

Frame Rate 24/25/30fps, 50/60fps for 1080/720p
Codec H.264/H.265
Rate Control CBR/VBR
Live Preview Web, HDMI output
OSD English/Chinese,WYSIWYG editor
Network LAN 100/1000Mbps Gigabit
WEB http, https
Streaming Streaming Out RTMP(s)/SRT/RTSP
Bit Rate Max. 50mbits/s, adjustable
NDI® NDI® | HX3/HX2/HX(NDI v5.5, upgradeable)
Main Video Stream Up to 4K
Secondary Video Stream Up to 720P
Recorder mp4, mov
Rotation 0/90/180/270°, native vertical streaming
Video HDMI Out 1.4b, 4:2:2(YCbCr)
SDI Out 3G SDI, 800mVpp, 75ohm, 4:2:2(YCbCr)
NDI NDI | HX, HX2, HX3
Configuration Setting Mobile Phone, Pad, PC, RESTFUL API
OSD Text, Logo Caption
Camera Control Protocol VISCA over IP, NDI® , Web, OnVIF
Local Rear 5 button menu control
WEB Browser GUI from desktop or mobile
Audio Sampling 32, 44.1, 48KHz
Encoder AAC, MP3, 16bit
Bitrate 32-192kbps
Line Input 0.7VRMS, 20K, 2CH, AGC
Source Line In, MIC
Audio Embedding HDMI,SDI and NDI
Tally Tally LED Auto/Manual
Storage Network NAS
Recorder mp4, mov, ts
Software Firmware Upgradeable, Linux OS
Interface Power 1 x USB TYPE C,POE
HDMI Output 1 x TYPE A, Receptacle, 1.4b
Audio In 1 x 3.5mm TRS Jack
Network 1 x RJ45, Gigabit, PoE
USB 1 x USB, TYPE A
Visible 1 x LED at rear panel
SDI 1 x BNC Full size
Tally 2 x LED, front
Physical Body size 55.6L x 52D x 47.7H mm(2.18” x 2.05” x 1.87”)
Weight 166g (5.9oz) , Black aluminum
Operating 0°C to 45°C(32°F to 113°F), Indoor
Storage -20°C to 60°C(-4°F to 140°F)
Mount 1/4”-20UNC x 3 tripod
Certification CE,FCC(In progress)

Download

Item Type Update Version
Spec PDF 24/2/7
Quick Start PDF 24/2/7

Order Information

* All specifications are subject to change without notice.* Accessories may be different for different product options.* Actual object may differ from what shown in catalog. * All specifications are subject to change without notice.* Accessories may be different for different product options.* Actual object may differ from what shown in catalog.
Product P/N
4K POV Camera,M12 30631-001
4K NDI POV Camera,M12 30631-011

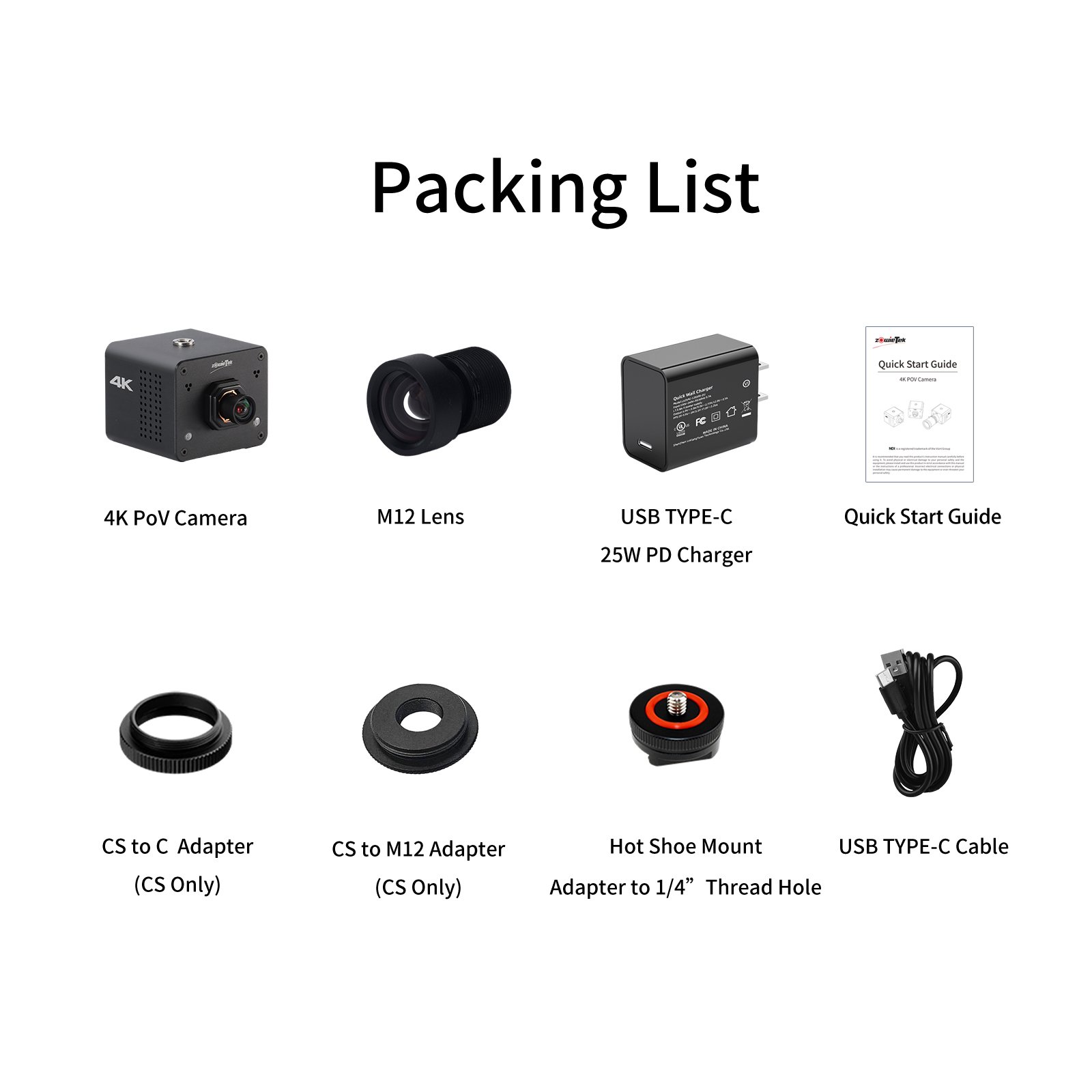

Accessories
USB TYPE C 25W PD Charger x 1
USB TYPE C Cable x 1
4K M12 Lens x 1
Quick Start Guide
CS/M12 Adapter (CS only)
C/CS Adapter (CS Only)
*Accessories is optional and sold separately
