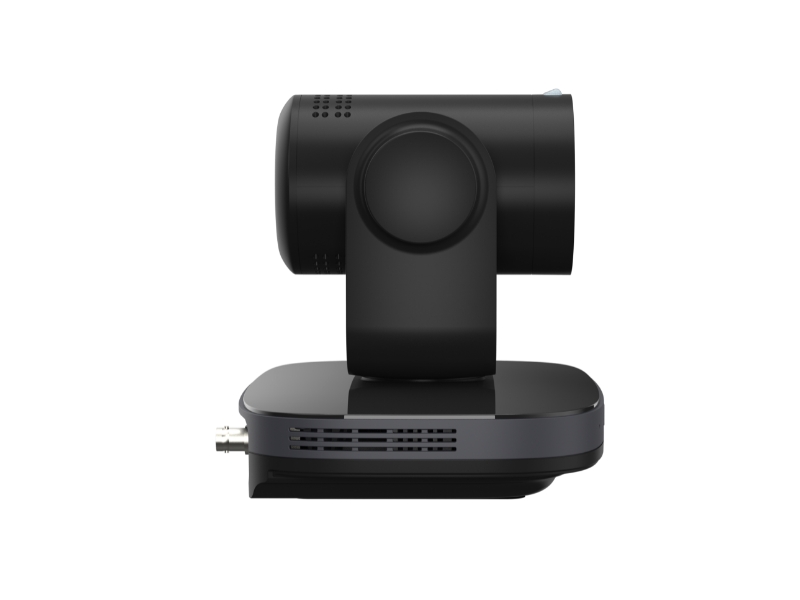

PTZ NDI Camera 4K

Overview

Thin-Walled PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition.

Features

  • AI tracking: With the help of the AI computing power of the chip, the monocular human shape tracking based on advanced AI algorithm, combined with convenient tracking settings, can be used in a variety of scenes such as education, conference and live broadcast to realize the intelligent guide function.
  • NDI|HX2: NDI|HX2 has the characteristics of low delay and plug and play, which is convenient for project implementation and deployment. It has a good ecology and supports the simultaneous transmission of audio, video and control commands. It is a new generation of network video transmission mode.
  • 4K UHD: The new generation of Sony 1 / 1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels can realize 4K (3840×2160) ultra-high-resolution high-quality images.And downward compatible with 1080p, 720p and other resolution.
  • 20x optical zoom: It adopts 4K ultra long focal lens with high quality and 8 million ultra-high resolution, 20 times optical zoom, and the maximum field angle is 60 °.
  • HDMI2.0: Support HDMI2.0 interface, which can directly output 4kp60 uncompressed digital video.
  • Low illumination: The new CMOS image sensor with ultra-high sex noise ratio can effectively reduce the image noise under low illumination. The application of 3D noise reduction algorithm can greatly reduce the image noise. Even under ultra-low illumination, the picture remains clean and clear, and the image signal-to-noise ratio is more than 55dB.
  • Rich and perfect interfaces: Support HDMI2.0 HD output, equipped with 3G-SDI interface, with an effective transmission distance of up to 150m (1080p30). HDMI or 3G-SDI, USB and LAN can output 3 HD digital signals at the same time.
  • Remote control: Multiple control modes, RS232, RS485, network and USB can be used to control the camera.
  • Gravity sensor: It supports the automatic image flipping function, which is convenient for engineering installation and use.



Specifications
Camera
Video System

4K@60fps,4K@59.94fps, 4K@50fps,4K30fps, 4K@25fps, 4K@29.97fps,

1080P@60fps,1080P@50fps,1080I@60fps,1080I@50fps,

1080P@30fps,1080P@25fps,1080P@59.94fps,1080I@59.94fps,1080P@29.97fps,

720P@60fps,720P@59.94fps.720P@50fps

Sensor1 / 1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels
Scanning ModeProgressive scanning
Lens20x, f = 6.25mm ~ 125mm, F1.58 ~F3.95
Digital Zoom16x
Minimal Illumination0.5Lux @ (F1.8,AGC ON)
Shutter1/30s~1/10000s
White BalanceAutomatic, indoor, outdoor, one touch, manua
Backlight CompensationSupported
Digital Noise Reduction3D digital noise reduction
Video S/N≥55dB
Horizontal Angle of View60° ~ 3.5°
Vertical Angle of View35.7° ~ 2.0°
Horizontal Rotation Range±162.5°
Vertical Rotation Range-30° ~ +90°
Pan Speed Rang1.8°~80°/S
Tilt Speed Range1.5°~49°/S
H & V FlipSupported
Image FreezeSupported
PoESupported
Number of Preset255
Preset Accuracy0.1°
USB Featured
Operate SystemWindows 7, Windows 8, Windows 10, Mac OS X,Linux,Android
Color System / CompressionYUY2 / H.264 / MJPEG /H.265
Video Format

  YUY2 :MAX 1080P@30fps H.264

AVC: MAX 2160P@60fps H.265

HEVC:MAX 2160P@60fps

MJPEG:MAX 2160P@30f

Audio on USBSupported
USB Video Communication ProtocolUVC 1.1~1.5
UVC PTZSupported
Network Features
Video CompressionH.265/H.264/MJPEG
Video StreamFirst streaming, second streaming
Main Stream Resolution3840×2160, 1920×1080, 1280×720, 1024×576 etc.
Sub Stream Resolution720×576, 720×480, 320×240 etc.
Video Bit Rate32kbps~102400kbps
Bit Rate TypeVariable bit rate,Fixed bit rate
Frame Rate50Hz: 1fps~50fps, 60Hz:1fps~60fps
Audio CompressionAAC、G711
Audio Bit Rate96Kbps,128Kbps
Support protocolsNDI®|HX2, SRT, TCP/IP,HTTP,RTSP,RTMP(s),Onvif,DHCP,Multicast and so on
Input/Output Interface
HD Output 1xHDMI  2.0
Video format:4K@25/30/50/60/59.94/29.97fps; 1080P@25/30/50/60/59.94/29.97fps;
1080I@50/60/59.94/29.97fps ; 720P@50/60/59.94fps
Remarks:4KP60 HDMI output only supports YUV
 1x3G-SDI:BNC type, 800mVp-p, 75Ω, Comply with SMPTE 424m standard.
Video format:1080P@25/30/50/60/59.94/29.97fps; 1080I@50/60/59.94fps;720P@50/60fps
Network Interface1xRJ45: 10M/100M/1000M Adaptive Ethernet
Audio Interface1-ch, 3.5mm Audio Interface, Line In;
USB1-ch,USB2.0, Type-C
Communication Interface   RS232 In
8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
      RS232 Out
8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
RS485
3pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
RESTORESupport
Power JackJEITA type (DC IN 12V)
Generic Specification
Installation DirectionSuit,Flip
DisplaySupport
Tally Lamp1PCS (Red and Green)
Power Indicator1PCS(Blue)
Status Indicator1PCS(Green)
IR Remote Control InputSupport
Input VoltageDC 12V / POE
Operating Temperature0°C ~ 40°C
32°F ~ 104°F
Storage Temperature-40°C ~ 60°C
-40°F ~ 140°F
Power ConsumptionMAX 18W
Dimensions223mm*154.8mm*165mm
8.78″ x 6.09″ x 6.5″
Net Weigh1.8kg
Input Current2A(MAX)

Download

ItemTypeUpdateVersion
Spec PDF22/07/21
Manual PDF22/07/21
FirmwareZIP
ZowiePTZ App (Windows) ZIP13/07/21

Order Information

ProductP/N
4K PTZ NDI Camera90492-960
4K PTZ Camera90482-960
Accessories
Random Accessoriespower supply,  USB 2.0 cable, remoter, manual, wall mount bracket
Selected AccessoriesIn-ceiling mount bracket

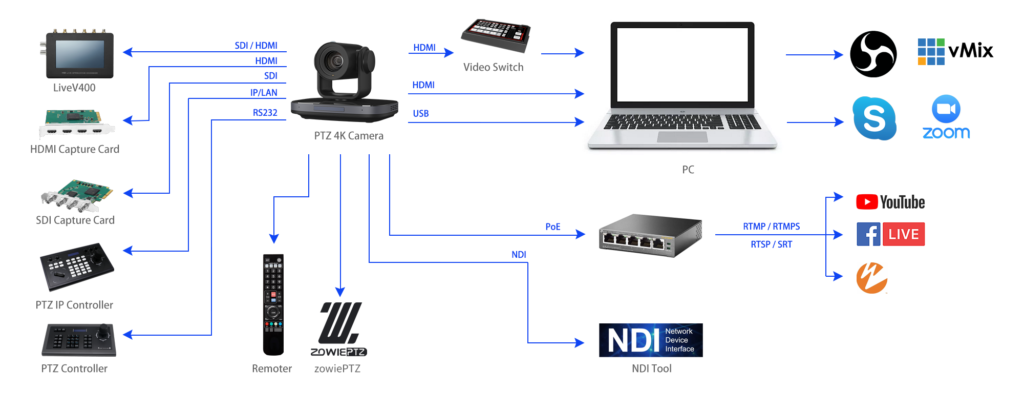

Typical Application

NDI® is a registered trademark of NewTek, Inc.
