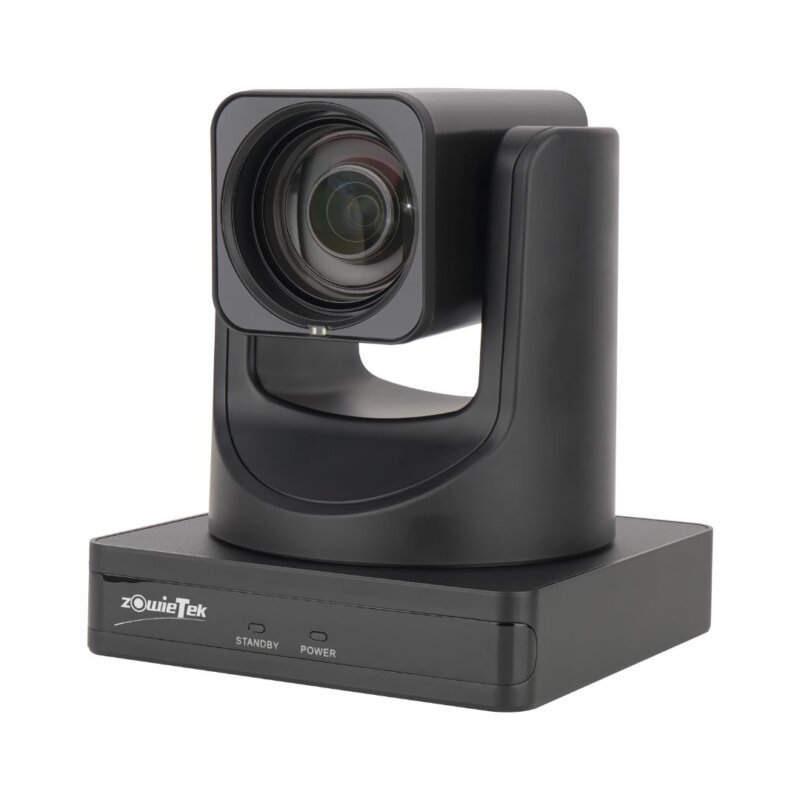

Vertical PTZ Camera

  • The 1/2.8-inch quality HD CMOS sensor with effective 2.07 megapixels offers HD quality images up to 1920×1080 pixels.
  • Using an advanced focusing algorithm and TOF module assists in focusing, the lens can focus quickly, accurately, and stably.
  • Full function USB interface, compatible with USB 3.0 and USB 2.0, support audio and encoding output and support the UVC V1.1 ~ 1.5 protocol.
  • The application of 2D and 3D noise reduction algorithm greatly reduces image noise. Even under the condition of ultra-low illumination, it still keeps the picture clean and clear, and the SNR of the image is as high as 55 dB.
  • Simultaneously support DC 12V power adaptor and USB 5V power supply to meet the needs of various conference or live broadcast environments.
  • 72.5° ultra-wide-angle lens with 12x optical zoom and 16x digital zoom.
  • The camera can be controlled remotely through the RS232, network and USB port.
  • Support portrait output to meet the needs of a network broadcast.
  • The USB interface supports YUY2, NV12 and MJPEG video formats.
  • Support HDMI, USB 3.0, and network audio and video output.
  • No need to download the driver, USB output plug and play to take a convenient and simple user experience.

Typical Application

Camera
Signal System 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50
Sensor 1/2.8 inches, CMOS, Effective Pixels: 2.07 Megapixels
Scanning Mode Progressive
Focal length 12x, f=3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom 16x
Minimum Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation Support
Digital Noise Reduction 2D & 3D Digital Noise Reduction
SNR ≥55dB
Horizontal FOV 72.5° ~ 6.9°
Vertical FOV 44.8° ~ 3.9°
Pan Angle ±170°
Tilt Angle -30° ~ +90°
Pan Speed 2.7° ~ 35.7° /s
Tilt Speed 2.7° ~ 31.5° /s
Image Flip Support
Image Freeze Progressive
Preset Position 255
Preset Accuracy 0.1°
Interface
USB Interface 1 x USB 3.0, Type-C
HDMI Output 1 x HDMI 1.4b
Network Interface 1 x RJ45: 10M / 100M adaptive Ethernet
Audio Interface 1 x Line In, 3.5mm Jack
Control Interface 1 x RS232 In: 8pin Min DIN, Max. Distance: 30m, Protocol: VISCA /
Pelco-D / Pelco-P
Power Interface JEITA (DC IN 12V) / USB Type-C(USB IN 5V)/ PoE
Network Features
Video Compression H.264 / MJPEG
Video Stream First Stream, Second Stream
First Stream Resolution 1920×1080, 1280×720, 1024×576 etc.
Second Stream Resolution 1280×720,1024×576,720×576(50Hz Supported), 720×480(60Hz Supported)
etc.
Video Bit Rate for First Stream 32Kbps ~ 20480Kbps
Bit Rate Control VBR, CBR
Frame Rate 50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps
Audio Compression AAC
Audio Bit Rate 96Kbps, 128Kbps, 256Kbps
Protocols TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
USB Features
Operating System Supported Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color System / Compression YUY2 / MJPEG / H.264
Video Format YUY2:Max.1080p/30 ;NV12:Max.1080p/30; MJPEG: Max.1080p/30
UVC Audio Support
USB Video Communication Protocol UVC 1.1
UVC PTZ Control Support
General Specifications
Input Voltage DC 12V / USB 5V
Input Current 12V 1.0A(Max.)/5V 1.5A(Max.)
Operating Temperature -10° C ~ 40° C/14℉ ~104℉
Storage Temperature -40° C ~ 60℃/-40℉~140℉
Power Consumption 12W (Max.)
Dimension 144x 144 x 166.9mm/5.67x 5.67x 6.57inch
Net Weight 1.41Kg/3.11 lb
Item Type Update Version Download
Spec PDF 04/08/20
Quick Start PDF 10/20/20
Manual PDF 04/24/20
Firmware ZIP
Item P/N
Vertical PTZ Camera 90471-980
Accessories
Power Supply
USB 3.0 Cable
User manual
Remoter Control
