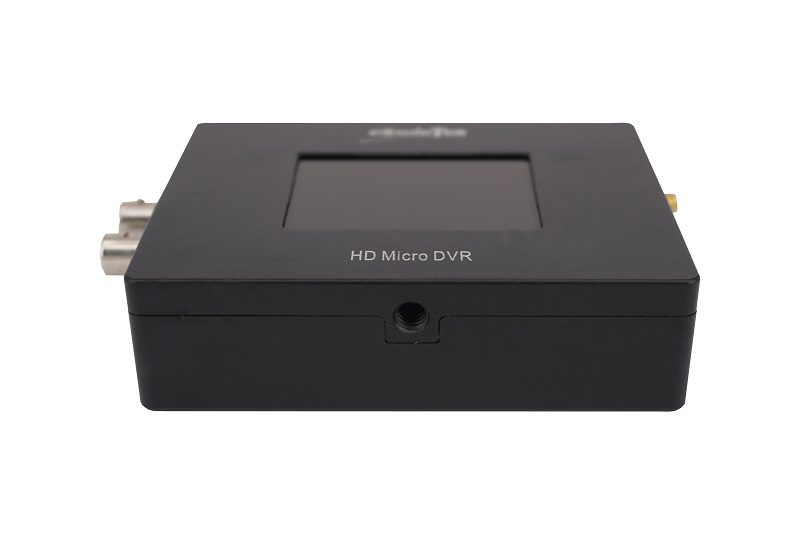

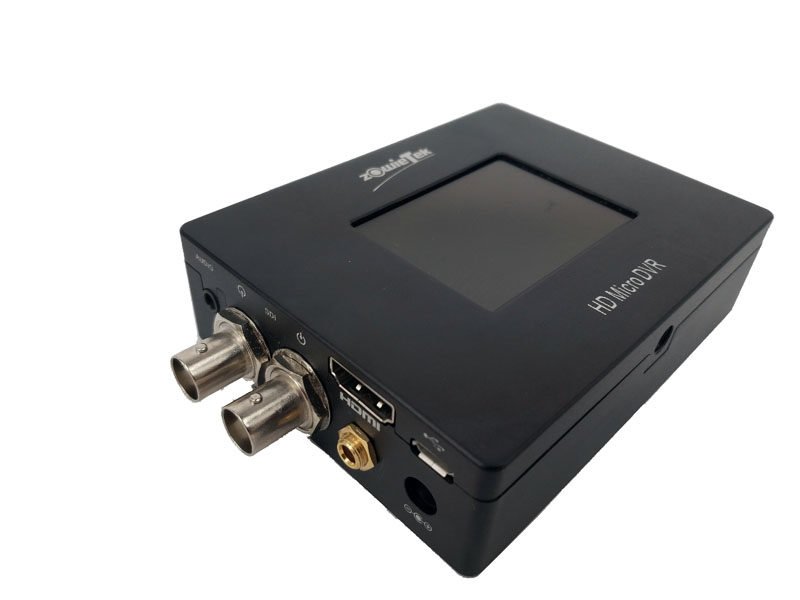

HD Portable MegaDVR

Overview

The HD Portable MegaDVR, a solid state 1080p Full HD DVR with advanced H264 codec, is one dedicated battery powered SDI/HDMI recorder designed for mobile video applications. It is a rugged, easy to use camcorder that records beautiful 1080p video from almost any video sources. A single record and photo button makes operation simple and easy with just one click. It is standalone DVR, internal battery can supply recording up to 5 hours. External power adapter can be connected for longer recording time or fully chareg the battery in 2hours alone. It is as samll as palm that you can take it anywhere. Portable MegaDVR  can record high-definition crisp 1080p video at a full frame rate up to 12Mbits/s and save extremely clear still images and videos to external USB HDD, USB Flash, SD Card or network. With external HDD, it can record highest quality HD video up to two weeks. There level record qualities are available. External gain adjustable omni-directional microphone, buzzer and color LED feedback are also available. Meanwhile, MegaDVR supports real time streaming by LAN and view on PC or iPad/iPhone. It enables the live video streaming on PC or iPad/iPhone. Portable MegaDVR is small size, universal and easy operation, no special training is required. It is just plug and play. It has universal video connectivity and compatibility, the dual video input accepts DVI, HD/3G SDI,  and HDMI as well as 1080i50/60 or 1080p50/60. It also has SDI loop output. The HD Portable MegaDVR can be used in almost unlimited number of situations, like scientific research, video footage, soports, security surveillance, remote monitoring, spy, car racing, helicopter, bus, TV station and filming, etc.

Features
  • Easily record crisp 1080p video and images
  • 5hrs standalone video recording
  • Still image photo and DICOM support
  • Support both H.264 and MPEG4 video codec
  • HDMI and SDI input
  • Support full HD video up to 1080@60fps
  • The video formats support most of video edit software
  • Instant reply to preview monitor or LCD
  • 3 level gain adjustable Omni-directional microphone
  • Shortcuts to quick switch video source and storage media
  • Samll size, low cost and high quality
  • upgradable firmware

Specifications

Power Voltage AC 110-240V 1A 50/60Hz 12VDC 2A
Video and Photo Video Encoder H.264/HP, MPEG-4/SP
Resolution 1920×1080@25/30/50/60fps, 1280×720@50/60fps 480i/576i 1080i@50/60 SMPTE 425M/424M, 292M/274M/296M
Bit Rate Max. 12Mbits/s, 3 level adj.
Frame Rate 24/25/30fps, 50/60fps
Codec H.264/MPEG4, .mp4/.mov file format
Rate Control CBR/VBR
Photo Jpeg, BMP
Streaming RTSP
Audio Sampling 16Khz, 16bits
Codec AAC Stereo
Channels 2 with AGC 2.2VDC Bias, 2.2Kohm, <0.7VRMS -36db. MIC gain adj.
Interface HD/3G SDI In. 1 x BNC, 75ohm, 800mVpp
DVI Input via HDMI/DVI adapter or cable
HDMI I nput 1 x TYPE A, Receptable
Preview LCD
SDI Loop Output Loop out HD/3G SDI, 75ohm, 800mVpp
Audio In 2CH, 2 x 3.5mm Jack, 20Kohm higher
Audio Out 2CH, 2 x 3.5mm Jack
Network RJ45 10/100 Ethernet
Network Stack RTSP
USB 3 x USB 2.0
SD TF/MicroSD
Visible Color LED
Alert Buzz
LCD 2.4″ TFT for video preview and setting
Button Top 2 and side 3 direction
Storage
External USB Flash Drive, USB HDD, SD (Sold Seperately )
Disk Format FAT32, up to 2T
Physical Size 102 x 82 x 39mm (4″ x 3.2″ x1.2″) Aluminum case
Weight 320g (11oz)
Operating 0°C to 45°C(32°F to 113°F)
Storage -20°C to 60°C(-4°F to 140°F)

Download

Item Type Last Update Version Download
Spec PDF 2018.1.19
User Manual (*password reiqured) PDF 2019.1.23 2.3.9
Software ZIP 2018.01 1.2.0  –
Firmware ZIP 2018.01 2.2.2

Order Information

Item P/N
HD Portable MegaDVR  P/N: 30421-030
Accessories
USB Waterproof Silicon Keyboard 68980
LANC Remote Control w/2.5mm Plug 30351-010
Accessories listed above are optional and sold seperately
