Overview
Live210 is a high definition, bonding dual video camera streaming encoder. It is professional, ultra-small and light, cost-effective Live Video Streaming Encoder for mission critical streaming applications.
It can be remotely control and set over internet by PC or phone just by scan the QR-Code on the back of encoder.. Each LiveV210 have a unique account for setting and bonding. It can also be accessed by WEB on LAN.
LiveV210 can push video simultaneously over multiple aggregated network connections, including cellular 4G/LTE (two USB cellular modems). Offers up 4 network links including 2x4G, WIFI and LAN bonded connections, all plug and play. With proprietary UMB Bond Link technology and bonding server, LiveV210 can provide increased bandwidth efficiency with low latency, adaptative network payload balance and resend control for mission critical live events freely without concern for poor connectivity.
The state-of-art encoder can be widely used in vari-ous business activities such as product launch, open ceremony, education, training, surgical operation, drone aerial video, wedding ceremony, sports event, public welfare activities, group activates and so on.
Features
- Creative dual camera inputs, live collage switch and preview with 6 preset and 2 customized layout with easy-to-use drag and drop.
- Propriety UMB bonding technology with high bandwidth efficiency, low latency.
- Up to 4 aggregated connections, 2x4G + WIFI + LAN. Plug and Play
- Up to 10mbits/s bonding video stream by encoder over 4.
- Up to 9 streaming forward support by bonding server.
- Barcode scan then configuration with mobile phone. Local and remote management by mobile phone and PC.
- Advance hardware H.264 MP/HP video codec for highest stability.
- AAC audio encoder with HDMI/SDI embedded audio support.
- Analog audio input and audio output for embedded and analog.
- Save live video into mp4 file on TF while live streaming.
- Automatic dual input resolution, format detection, no professional setting required.
- Powerful and flexible OSD, text, logo and stamp can be support with easy-to-user configuration.
- SDI loop out. Optional HDMI loop out.
- All aluminum rugged design with camera tripod mount.
- Support YouTube, twitter, Facebook and Twitch etc.
- Based very stable Linux system. Local and online upgrade availa-ble
- Optional GPS/gForce.
- OEM/ODM
Typical Application
Specification
| Power | Input | 12V-15V DC/1.6A |
| Consumption | 15V@0.5~1A, Single Channel~Bonding | |
| 12V@1.5A, Power Off Charging, ~2Hr | ||
| Network | Video Streaming | RTMP, RTSP |
| WiFi | 802.11b/g/n/ac, 2.4/5.8Ghz | |
| 4G | LTE: FDD1/3/8, TDD38/39/40/41, USB 4G Dongle Optional | |
| LAN | 100/1000Base-T | |
| Bonding | LAN+WIFI+2✖4G, Simultaneous up to 4, Bonded forward x9, RTMP pull | |
| Configuration | Config | Mobile Phone/WeChat mini-program |
| WEB | LAN/WIFI by PC/Mobile Phone | |
| Video | Encoder | H.264/AVC MP/HP |
| Resolution | 1920×1080@25/30/50/59.94/60, SD1920x1080i50/59.94/60, 720p50/60 | |
| Bitrate | 256K-10Mbits/s | |
| Frame Rate | 25/30 | |
| Latency | <200ms | |
| Storage | MicroSD/TF | |
| Audio Input | Sample | 48K |
| Encoder | AAC, 128Kbit/s | |
| Channel | Dual, AGC | |
| Input | 0.7VRMS, 20K | |
| MIC | 2.2V, 2.2K Bias，60db gain adj. | |
| Input | SDI | SD SDI, HD SDI, 3G SDI, SMPTE 296M/274M/292M |
| HDMI | 1.4a | |
| Audio | SDI/HDMI Embedded, Analog Input | |
| Management | Configuration | Mobile Phone/WeChat mini-program |
| WEB | LAN/WIFI by PC/Mobile Phone | |
| LCD | Touch menu and buttons | |

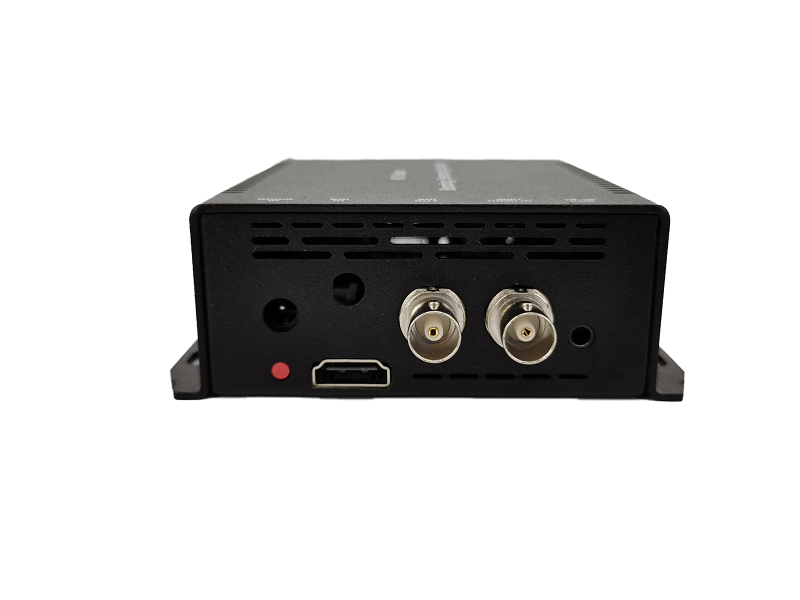

| Interface | SDI Input | 1 x BNC, 75ohm，800mVpp |
| SDI loop out | 1 x BNC, 75ohm，800mVpp | |
| HDMI Out | 1xMini HDMI | |
| HDMI Input | 1 x Type A | |
| Audio In | 1 x 3.5mm Jack | |
| Audio Out | 1 x 3.5mm Jack | |
| Ethernet | 1 x RJ45 | |
| 4G/WIFI | 1 x SMA/m, 1 x SMA/F | |
| USB | 2xUSB | |
| Storage | 1 x MicroSD/TF | |
| Sound | Buzz | |
| Others | OSD | Text, Logo Caption, Time Stamp |
| Collage | 8 Modes and 2 customized | |
| Physical | Size | 103x85x37mm(4.1×3.2×1.5”) |
| Weight | 231g(9.2oz) | |
| Temperature | 0°C to 45°C |
Download
| Item | Type | Last Update | Version | Download |
| Spec | 2020.07.08 | – | ||
| User Manual | ||||
| Frimware | ZIP |
Order Information
| Item | P/N |
| Bonding Dual Camera Streaming Encoder | 30411-110 |
Accessories |
|
| 15V DC Power Adapter x 1 | |
| WIFI Antenna x 1 | |
| USB 4G Dongle (Optional and different for different country and area) | |
