Announced in the year of July. 2021, Shanghai–Zowietek Electronics, Ltd., – the switcher is a 4-channel HDMI multi-format video switcher that supports a variety of features including video switching, audio mixing, PGM/multi-screen output/auxiliary output, different switching effects, Luma Key Chroma Key, DSK, picture freeze, multimedia library, and more.
4 Channel Inputs
The swithcher has 4 HDMI input connectors compatible with a variety of equipment. And 3 outputs: 1× HDMI PGM ,1× HDMI multi-screen, 1 × USB type-C, which support video can be output in different ways.
Audio Listening
The headphone output can be used to listen for audio, and users can select an audio source from the main audio, 4 HDMI embedded audio, and 2 MIC audio as the output.
Switch and Effects
T-bar/ Auto/ Cut transitions;
various effects: WIPE(9×2 patterns) / MIX/ DIP.

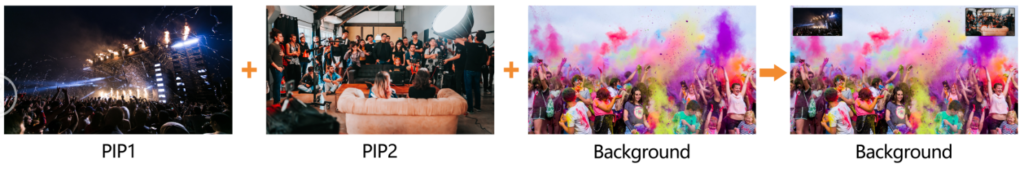

Upstream and Downstream Keys
You can set your own video parameters, including brightness keys, chroma keys, picture-in-picture and other functions
Audio Mixing
The switcher supports overlaying 6 audios, including 4 HDMI inline audio and 2 MIC/Line audio inputs. Users can independently turn HDMI 1, HDMI 2, HDMI 3, HDMI 4, MIC 1 and MIC 2 on and off independently. You can also adjust the audio volume.
Control the Switcher
Users can control software in PC after LAN connected .The on-screen menu display appears on the preview screen and is easy to operate with hardware controls. The device can be connected to the PC via the USB-C interface, with the help of third-party software (OBS) for streaming
