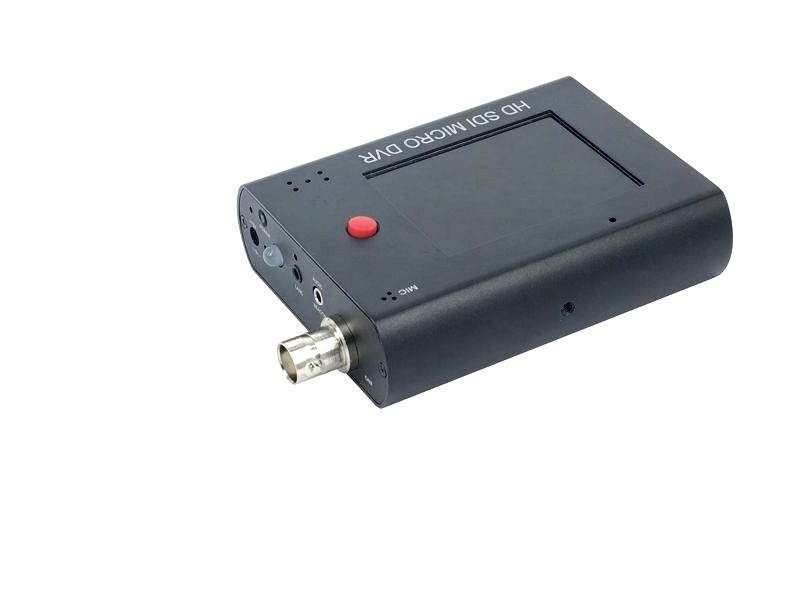

HD SDI Micro DVR

Overview

The HD/3G SDI DVR, a solid state 1080p Full HD Bullet DVR with advanced H264/MPEG4 codec, is one dedicated battery powered HD SDI DVR designed for mobile applications. It is a rugged, easy to use camcorder that records beautiful 1080p video from any HD SDI video source. it supports power over coaxial cable so no separate power input cable required. A single record button makes operation simple and easy with just one click. Even more, you can connect to handy LANC remote control while focusing on your activities. There are six level record quality, LQ/EP/LP/SP/HQ/UQ for record options. On board gain adjustable omnidirectional microphone, on board charger and buzzer are also available. One full-color LED are used to indicate DVR status. The HD SDI DVR is the unique SDI DVR on the market, that supports any standard HD or 3G SDI camera with SDI jump cable. The external SDI camera can even be powered by DVR if the current consumption is under limit. Besides this, a series of quality high sensitivity, low light operation HD SDI bullet camera are also optimized and supplied for the HD SDI DVR for better clarity, accurate color, minimal distortion, smallest size and easy operation. The recorded video files can be imported to any PC via onboard USB or card reader and replayed. A supplied software ExtremeApp can also import, replay recorded video with future GPS, GoogleMap, G-Force support. The HD SDI DVR is designed with internal Industrial Lion polymer batteries for both DVR and camera standalone power. It will be charged automatically by on board charger while external power connected. The external power can be swapped with battery any time without the interruption of record operation. It supports standby mode while idle to extend the working time. HD SDI DVR records the video into crisp 1080p full HD video stream at a full frame rate up to 12Mbits/s. It also supports time-lapse photo and high-speed burst mode so no brilliant senses will be missed. The HD SDI DVR can be used in almost unlimited number of situations, like sports, security surveillance, remote monitoring, spy, car racing, helicopter, bus, TV station and filming etc. The greatest advantage of SDI camera is fully digital, high quality, low latency, robust video over long distance coaxial cable. It is a best solution for a broad range of business and industrial A/V applications where long distance, high definition video transmission is required, such as machine vision, video conference, education and training etc.
Features
  • The smallest and lightest HD SDI DVR on the market
  • Support Full HD up to HD SDI and 3G SDI
  • Video Bit Rate up to 12Mbps
  • Support both H.264 and MPEG4 video codec
  • Support frame rate 25fps/30fps and 24fps
  • 5 level gain adjustable Omnidirectional microphone
  • Photo Burst mode and Time-Lapse mode
  • Take single, burst and continuous photo
  • Unique LANC remote control interface
  • Support GPS overlay and logger
  • Power over cable so no separate power input required
  • Battery powered for mobile DVR applications
  • Hot swappable external power or Internal Battery
  • On-board battery external charge circuit
  • Low power consumption up to 90 minute recording
  • Record on removable SDHC Card
  • 2.4″ TFT LCD for in field setting and preview
  • Real-time Clock, Time/date stamp and OSD
  • Rugged aluminum housing
  • Optimized HD SDI Bullet Camera with lock connector
  • Rugged aluminium bullet shape housing
  • Camera wearable on head or mount on bars, helmet or vehicle
  • Camera weather proof withstands dust, dirt, mud or rain
  • DVR powered Camera
  • Light weight only 178g with battery and MicroSD card
  • upgradable firmware

Specifications

Power Voltage 12VDC / 112-240VAC Adapter 1A
Battery 2×3.7V Li-polymer rechargeable battery 1600mAH
USB 5VDC 900mA
CAM Power 5-18V 3W DC limit
Consumption 5VDC 650mA
Video Encoder H.264/AVC Main Profile MPEG-4
Resolution 1920×1080@25/30fps
Camera & Input 720p50/60 1080i50/60 1080p25/30 1080p50/60
Bit Rate max. 12Mbits 6 level adj.
Codec H264/MPEG4 .avi file format
Rate Control CBR/VBR
Photo Jpeg 1920×1080
Audio Sampling 32Khz 16bits
Codec AAC
Channels 2 with AGC
MIC 2.2VDC Bias 2.2Kohm -36db MIC gain adj.
Camera* Size 1/2.7″ 1/3″
Active Pixel 1920×1080 2.2um pixel size
Lens Fixed CS Mount manual
Sensitivity 3300mv/lux-sec
Dynamic Range 69db
Scan Progressive scan
Shutter Rolling shutter
Exposure AEAWB
Output HD-SDI 1.485Gb/s 3G-SDI 2.97Gb/s
Interface Video SDI BNC 75ohm 800mVpp
Power Micro USB DC 4.2mm O.D. x 1.3mm I.D
AV 10 pin Lock Connector
Memory SDHC up to 32GB
LANC Control 2.5mm LANC Jack
Button Record Power Directional
Visible Full-color LED
Alert Buzz
LCD 2.4″ TFT
Physical Dimension 87x70x23.5mm (3.15″x2.75″x0.9″)
Weight 178g (6.3oz)

Download

Item Type Last Update Version Download
Spec PDF Spec
User Manual* (*password reiqured) PDF 2019.04 1.8.8 Manual
Software ZIP 2013.10 1.2.0 Software
Firmware ZIP 2019.04 2.2.5 Firmware

Order Information

Item P/N
HD SDI Micro DVR, Lock Connector 30261-020
HD SDI Micro DVR, BNC 30261-021
HD SDI Micro DVR, Power over Coaxial 30261-022
HD SDI Micro DVR, GPS, Lock Connector 30261-025
HD SDI Micro DVR, GPS, BNC 30261-026
HD SDI Micro DVR, GPS, BNC, Power over Coaxial 30261-027
HD SDI Micro DVR with USB Storage, BNC 30261-061
HD SDI Micro DVR with USB Storage, GPS, BNC, Power over Coaxial 30261-067
Accessories
HD SDI MICRO DVR Beacon Receiver 65500-010
Universal Power Adapter, UL/ AUSTRALIA/ GS/ UK  55900
HD SDI Bullet Camera 30351-XXX
HD SDI Bullet Camera with CS Mount 30351-XXX
Hard Wired Power Cable/Car Cigarette Lighter Adapter  65511-030/65510-020
Accessories listed above are optional and sold separately
Order Information Guide
P/N SD Card USB Storage Video Input 3G SDI Input CAM Power GPS/G- Force USB Charge
30261-020 Y Lock Y Y
30261-021 Y BNC Y Y
30261-022 Y BNC, PoC Y Y Y
30261-025 Y Lock Y Y Y
30261-026 Y BNC Y Y Y
30261-027 Y BNC, PoC Y Y Y Y
30261-060 Y Y Lock
30261-061 Y Y BNC Y
30261-065 Y Y Lock Y
30261-066 Y Y BNC Y Y
30261-067 Y Y BNC, PoC Y Y
* Support SDHC, SDXC card, recommend Class 6 or higher speed SDHC card * USB storage include USB Flash Stick & USB Mobile Drive * BNC Input supports 3G SDI input but only record in 1080 25/30p * PoC = Power Over Coaxial
